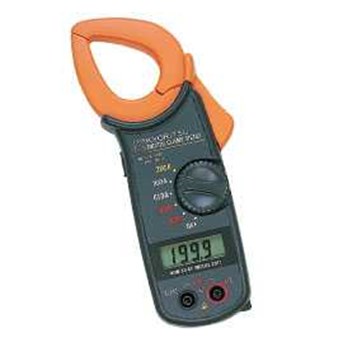

KYORITSU 2017

• Tear drop shaped jaws for ease of use in tight places and crowded cable areas. • Designed to meet internationally proven safety standards such as IEC 61010-1, UL3111 and VDE0411. • Three functions in one unit; AC current, AC voltage and resistance. • Resistance range provides audible continuity test. • Frequency response from 40Hz to 1kHz on AC current and voltage ranges. AC A : 200/600A |±1.5%rdg±4dgt [50/60Hz] (200A) |±1%rdg±3dgt [50/60Hz] (600A) |±2%rdg±5dgt [45Hz~1kHz] AC V : 200/600V |±1%rdg±2dgt [50/60Hz] |±1.5%rdg±4dgt [45Hz~1kHz] © : 200© |±1.2%rdg±2dgt Continuity buzzer : buzzer sounds below 30±20© Conductor Size : Ø33mm max. Safety Standard : IEC 61010-1 CAT.III 600V Pollution Degree 2 IEC 61010-2-031 Frequency Response : 45Hz~1kHz Withstand Voltage : 5550V AC for 1 minute Power Source : 6F22 (9V) × 1 Dimensions : 208(L) × 91(W) × 40(D)mm Weight : 400g approx. Accessories : 7066 (Test Leads) 9079 (Carrying Case) 6F22 × 1 Instruction Manual Optional : 8004/8008 (Multi-Tran)
